RTM3K-104+RTM-PK1+OPTION R&S WE2 EX DEMO

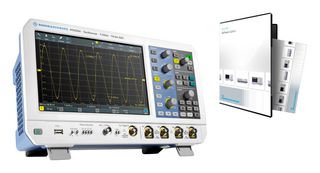

RTM3K-104+RTM-PK1+OPTION R&S WE2 EX DEMO is a package containing RTM3K-104 digital oscilloscope (RTM3004 4 channel digital oscilloscope with RTB-B2410 1GHz bandwidth upgrade), application bundle R&S®RTM-PK1 (-K1, -K2, -K3, -K5, -K6, -K7, -K15, -K18, -K31, -K36, -B6 and WE2 extended warranty of two years(demo). RTM3004 digital oscilloscope features 10.1" high resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, 10bit ADC and 40Msample/channel standard, 80Msample interleaved memory depth. The oscilloscope includes a wide range of upgrade options.

• 400Msample segmented acquisition memory (optional)
• Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
• Waveform update rate is 64000waveforms/s
• Minimum input sensitivity is 500μV/div
• 10 second boot time
• I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
• Arbitrary waveform and 4bit pattern generator optional
• Standard digital voltmeter and trigger counter
• LAN, USB host/device, fast display over Ethernet connectivity
• Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)

Contenu

RTM3004 oscilloscope, RTM-PK1 (-K1, -K2, -K3, -K5,-K6, -K7, -K15, -K18, -K31, -K36, -B6), RTM-B2410 bandwidth upgrade, 500MHz passive probe per channel, Power cord, Extended warranty.
