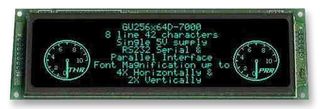

GU256X64D-7000
Afficheur VFD, matrice de points, 256 x 64, 28.65mm x 115.05mm, Parallèle / RS-232, 4.75 V à 5.25 V
Informations produit
Aperçu du produit
The GU256X64D-7000 is a Dot Graphic VFD Module include the vacuum fluorescent display glass, VF drivers and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8-bit parallel interface is 5V TTL/CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 115200 with none parity. The module is ready to receive ASCII characters without initialization commands. The 7000/7003 versions have firmware offering 4 user definable window areas and support multi-size international fonts. Scroll and flash with graphic upload functions.
- 256 x 64 Dot graphic
- High brightness blue green display
- -20 to 70°C Operating temperature range
- 11 multi sized fonts
- High speed 8-bit parallel interface
- Asynchronous RS232 serial interface
- Economic low profile modules
- Scroll + image + fill commands
Spécifications techniques
256 x 64
Graphique en points
5.25V
-20°C
Parallèle, RS232
No SVHC (15-Jan-2019)
28.65mm x 115.05mm
4.75V
-
70°C
-
Documents techniques (1)
Législation et Questions environnementales
Pays dans lequel la dernière étape de production majeure est intervenuePays d'origine :Japan
Pays dans lequel la dernière étape de production majeure est intervenue
RoHS
Certificat de conformité du produit
