AC243009
Kit d'extension, 3 cartes filles série SQI SST26VFxxx, mikroBUS / PICtail Connectivity
Vous en voulez davantage ?
| Quantité | Prix (hors TVA) |
|---|---|
| 1+ | 61,030 € |
Informations produit
Aperçu du produit

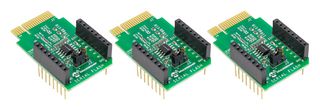

The AC243009 from Microchip is a SQI SuperFlash® Kit 1. The SQI SuperFlash Kit 1 contains three serial flash daughter boards. The serial flash daughter board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 development board (DM240001-2). It can also interface with the PICtail™ Plus connector that is located on the Explorer 16 development board (DM240001). The box contains 3 serial flash daughter boards and each board has a SQI flash device soldered on it.
- 3 pin header provides easy access for the external power supply and power measurement capability
- Plugs into the mikroBUS connector of the Explorer 16/32 development board
- Plugs into the PICtail Plus connector of the Explorer 16 development board
- Follows published recommended usage, including decoupling capacitors
Contenu
02-10609-4, 02-10609-5, 02-10609-6 serial flash daughter boards.
Spécifications techniques
Microchip
-
-
Trois cartes fille flash série SST26VF064B, SST26VF032B, SST26WF016B
No SVHC (21-Jan-2025)
-
-
Carte de développement Explorer 16/32 (DM240001 , DM240001-2)
-
