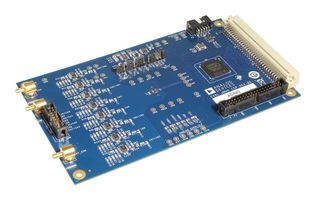

EVAL-AD7689EDZ

EVAL-AD7689EDZ is a fully featured evaluation kit for the AD7689. This board operates in stand alone mode or in conjunction with the Converter Evaluation and Development board, EVAL-CED1Z. When operated with the Converter Evaluation and Development board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Converter Evaluation and Development board.

• Converter and evaluation development (EVAL-CED1Z) compatibility
• Versatile analogue signal conditioning circuitry
• On-board reference, clock oscillator and buffers
• PC software for control and data analysis of time and frequency domain
• Stand alone operation
