EVAL-AD7172-2SDZ

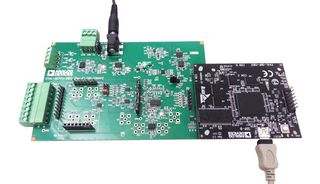

EVAL-AD7172-2SDZ is an evaluation kit that features the AD7172-2, a 24-bit, 31.25kSPS analogue-to-digital converter (ADC) with integrated rail-to-rail analogue input buffers, on-board power supply regulation, and an external amplifier section for amplifier evaluation. A 7V to 9V AC-to-DC adapter is regulated to 5V and 3.3V, this supplies the AD7172-2 and supports its components. The EVAL-AD7172-2SDZ connects to a USB port via the EVAL-SDP-CB1Z (SDP-B) controller board. The AD717x Eval+ software fully configures the AD7172-2 device functionality via an interactive block diagram and a user accessible register interface, and provides DC time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.

• Full featured evaluation board for the AD7172-2
• PC control in conjunction with the system demonstration platform (SDP)
• PC software for control and data analysis (time domain)
• Standalone capability

Contenu

EVAL-AD7172-2SDZ evaluation board, AD717x Eval+ evaluation software (CD), 7V to 9V AC-to-DC adapter, Plastic screw and washer set.
