XPE200100EK

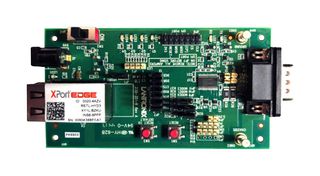

XPE200100EK is a XPort® EDGE evaluation kit. The XPE200100EK Kit offers an easy, quick, and simple way to evaluate the XPort EDGE. The XPE200100EK integrates the module into user designs allowing a fast, cost-effective way to test a newly networked product.

• Socket for XPort footprint (with XPort EDGE included)
• Serial (DB9) interface with multi-protocol transceiver (RS232/RS485)
• Jumpers to configure transceiver
• Jumpers to bypass transceiver for TTL access
• Reset Circuitry with power on/off switch
• RESET and RESET TO DEFAULTS buttons
• Current measurement
• Jumper control for LED output

Contenu

XPort EDGE evaluation board, XPort EDGE module – included on board, 5V DC power supply adapter (with international plugs), RS-232 null cable DB9M/F, CAT5e UTP RJ45M/M Ethernet cable, Serial adapter 25-pin to 9-pin.
