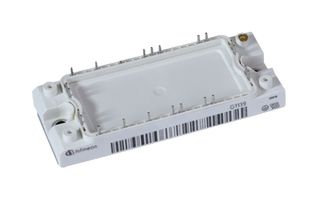

FS50R12KT3BPSA1
IGBT Module, Six Pack [Full Bridge], 75 A, 1.7 V, 280 W, 125 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS50R12KT3BPSA1
Order Code3775910
Product RangeEconoPACK 2
Also Known AsSP005422404, FS50R12KT3
Technical Datasheet
15 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | € 47.250 |
| 5+ | € 46.310 |
| 10+ | € 45.360 |
Price for:Each
Minimum: 1
Multiple: 1
€ 47.25 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS50R12KT3BPSA1
Order Code3775910
Product RangeEconoPACK 2
Also Known AsSP005422404, FS50R12KT3
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current75A
DC Collector Current75A
Collector Emitter Saturation Voltage Vce(on)1.7V
Collector Emitter Saturation Voltage1.7V
Power Dissipation280W
Power Dissipation Pd280W
Junction Temperature Tj Max125°C
Operating Temperature Max125°C
Transistor Case StyleModule
IGBT TerminationSolder
Collector Emitter Voltage Max1.2kV
Collector Emitter Voltage V(br)ceo1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 2
