6069-410-039

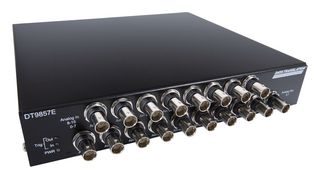

DT9857E-16-xAO is a high accuracy dynamic signal acquisition module for noise, vibration, and acoustic measurements. It is an USB-based, high-speed dynamic signal analysers with 16 simultaneous 24-bit IEPE sensor inputs, up to 105.4kS/s/ch sample rate, one tachometer input, and 16 digital I/O. They feature built-in IEPE signal conditioning for direct measurements from sensors like accelerometers and microphones.

• Simultaneous analogue input and waveform analogue output operations
• One 24-bit A/D converter per analogue input channel
• Input range of ±10V with software-selectable gains of 1 and 10 for effective input range of ±10 & 1V
• Support IEPE i/p including use of 4mA current source with 24V compliance voltage for AC/DC coupling
• Supports a software-programmable trigger source
• Sync bus for connecting and synchronizing multiple modules
• Locking USB connector
• External power supply
• Supported by Windows® 10/8/7/Vista® 32/64-bit OS

Contents

Dynamic signal analyser, USB cable, Power supply and USA style power cord, Printed insert: software quick start, MCC packaging assembly/foam, etc.

Notes

In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.
