KEITHLEY  2220-30-1  Alimentation de laboratoire, Multiple Output DC, Programmable, 2 sorties, 0 V, 30 V, 0 A, 1.5 A

Technical Data Sheet (715.94KB) EN Découvrez tous les documents techniques

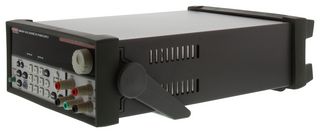

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.

KEITHLEY 2220-30-1
KEITHLEY 2220-30-1
Vidéo
360°

Aperçu du produit

Keithley models 2220 and 2230 multi-channel programmable DC Power Supplies combine 2 and 3 channels of output power to cost-effectively characterize and test a wide range of devices, circuit boards, modules, and products that require more than one power source. The model 2220 supply provides 2 channels, with each channel capable of outputting up to 30V and up to 1.5A. The model 2230 includes two 30V/1.5A channels and adds a 6V channel with up to 5A output for powering digital circuits. The models 2220 and 2230 multi-channel Power Supplies offer an excellent combination of performance, versatility, and ease of use to maximise the information from characterization or test as quickly and as easily as possible. They perform as effectively in automated test systems as they do in bench applications.
  • Dual output model with two channels up to 30V/1.5A/45W each
  • All channels are independently controlled and have isolated outputs for maximum flexibility
  • Remote sensing with all channels to ensure programmed voltage accurately being applied to the load
  • Two 30V channels can be combined in series or in paralell to double output voltage or current
  • 0.03% basic voltage output accuracy and 0.1% basic current accuracy ensure quality test data
  • Low noise, linear regulation with <3mVp-p ripple and noise
  • Voltage and current outputs for all channels are displayed simultaneously for easy observation
  • Keypad entry allows fast, precise entry of output values
  • Standard USB interface for automated testing

Informations produit

Type de sortie d'alimentation:
Programmable
Nbre de sorties:
2 sorties
Tension, sortie min.:
0V
Tension, sortie max..:
30V
Courant, sortie min.:
0A
Courant, sortie max.:
1.5A
Puissance:
90W
Tension, alimentation min.:
-
Tension, alimentation max..:
-
Garantie:
3 ans
Gamme de produit:
-
Type de fiche:
-
Tension, sortie:
30 V
Tension, sortie 2:
30 V
Tension d'entrée:
-
Nombre de canaux de sortie:
2 Sortie(s)
Régulation, charge:
0.01 %
Courant de sortie, sortie 2:
1.5 A
Largeur:
217.2 mm
Longueur:
361.6 mm
Hauteur:
90.7 mm
Courant, sortie:
1.5 A
SVHC:
To Be Advised

Trouver des produits similaires  groupés par caractéristiques communes

Législation et Questions environnementales

Pays d'origine :
China

Pays dans lequel la dernière étape de production majeure est intervenue

N° de tarif :
90303200
Poids (kg) :
7.3
