CYPRESS SEMICONDUCTOR  CY8CKIT-031  Kit de carte d'extension, PSOC, Capsense, Cortex-M3, pour applications 8/16/32bits

CYPRESS SEMICONDUCTOR CY8CKIT-031
CYPRESS SEMICONDUCTOR CY8CKIT-031
CYPRESS SEMICONDUCTOR CY8CKIT-031

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.

CYPRESS SEMICONDUCTOR CY8CKIT-031
CYPRESS SEMICONDUCTOR CY8CKIT-031
CYPRESS SEMICONDUCTOR CY8CKIT-031

Aperçu du produit

CY8CKIT-031 is a PSoC CapSense expansion board kit enables you to develop CapSense solutions with PSoC 3 and PSoC 5 devices. This kit is designed for use with the CY8CKIT-001 PSoC development kit, CY8CKIT-030 PSoC 3 development kit and CY8CKIT-050 PSoC 5 development kit. The new PSoC 3 and PSoC 5 architectures enable CapSense on all devices and the CapSense signals can be routed to any of the GPIO pins. Due to the vast amount of programmable analog and digital resources available in these devices as well as the higher performance CPUs and larger memory sizes PSoC 3 and PSoC 5 make great single chip solutions. It combines precision analog and digital logic with a high performance 8051 single cycle per instruction pipelined processor achieving ten times the performance of previous 8051 processors.
  • This expansion board has 2x22 pin connector for CapSense interface
  • This expansion board has 1x5 pin connector for I2C interface
  • This expansion board has 2x20 pin connector for DVK interface
CY8CKIT-031 contains ESD sensitive devices. Permanent damage may occur on subjected to high energy discharge. ESD precautions are recommended to avoid performance degradation or loss of functionality.
CY8CKIT-001 PSoC development kit, CY8CKIT-030 PSoC 3 development kit and CY8CKIT-050 PSoC 5 development kit are sold separately.

Informations produit

Silicon Fabricant:
Cypress
Architecture du Coeur:
PSoC
Sous-Architecture du coeur:
Cortex - M3
Nombre de noyau de silicium:
-
Numéro de famille Silicone:
PSoC
Nombre de bits:
8 /16 / 32bits
Contenu du kit:
CY8CKIT-031 CapSense Board, CY3280-BMM Matrix & CY3280-SLM Linear Slider Modules, CD, 3 Overlays
Gamme de produit:
-
Caractéristiques:
Les directive Commission DISPOSITIONS États États 3 dans États 5 directive
SVHC:
No SVHC (17-Dec-2015)

Trouver des produits similaires  groupés par caractéristiques communes

Applications

  • Détection et Instrumentation;
  • Electronique Grand Public;
  • Industrie;
  • Médical;
  • Automobile;
  • Traitement du Signal;
  • Conception embarquée et Développement

Contenu

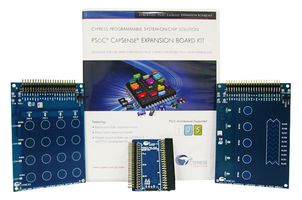

CY8CKIT-031 PSoC CapSense expansion board, CY3280-BMM universal CapSense matrix button module kit, CY3280-SLM universal capSense linear slider module kit, Two 1.5mm thick overlay and one 3mm thick overlay, Quick start guide, CD.

Remarques

CY8CKIT-001 PSoC development kit, CY8CKIT-030 PSoC 3 development kit and CY8CKIT-050 PSoC 5 development kit are sold separately.

Législation et Questions environnementales

Pays d'origine :
United States

Pays dans lequel la dernière étape de production majeure est intervenue

Conforme RoHS :
Non
N° de tarif :
85423990
Poids (kg) :
.318875
